Avanza

  F653LM-GQDFF
DIMENSIONS & WEIGHT
Overall length (mm)4190
Overall width (mm)1660
Overall height(mm)1695
Wheelbase(mm)2655
TreadFront (mm)1425
Rear (mm)1435
InteriorLength (mm)2480
Width (mm)1415
Height (mm)1270
Seating capacity7
Gross vehicle weight(kg)1680
ENGINE
Engine model code1NR-VE / 1.3-liter gasoline engine
Engine type16-valve DOHC with dual VVT-i
Piston displacement(cc)1329
Max. output (SAE net)(kW / rpm)71 / 6000
Max. torque (SAE net)(Nm / rpm)121 / 4200
Fuel typePetrol
Fuel tank capacity(liters)45
TRANSMISSION
Transmission type4-speed automatic transmission
CHASSIS
Steering gear typeRack & pinion
SuspensionFrontMacPherson struts
RearFive link
Stabilizer barFrontTorsion beam
RearLeading-trailing drum
Minimum turning radius (Tires)(m)4.7
Tires185/70R14
STANDARD EQUIPMENT (EXTERIOR)
Radiator grilleSilver paint
HeadlampsLED
Outside rear view mirrorElectric + colored
Door outside handleBody color
Rear combination lampsBulb-type, with chrome garnish
Disc wheel14-inch alloy
AntennaShark fin
STANDARD EQUIPMENT (INTERIOR)
Electric Power Steering (EPS)
Steering columnTilt
Steering wheelUrethane
Power windowWith jam-protection
Audio systemDisplay audio (AM + FM + DVD + AUX + USB + BT)
Air conditioningDual
SpeedometerStandard
Economy meter
Wireless door lock
Rear seat (second-row)50:50 one touch split fold with slide mechanism
Rear seat (third-row)50:50 split folding
SAFETY SYSTEM
Anti-lock Brake System (ABS) with
Electronic Brake-force Distribution (EBD)
SRS airbagsDriver & passenger
Seatbelts Front3-point ELR (Emergency Locking Retractor) x 2,
with pretensioners and force limiters
Second-row3-point ELR (Emergency Locking Retractor) x 3
Third-row3-point ELR (Emergency Locking Retractor) x 2
Child restraint systemISO-FIX + tether anchors

Specifications may vary from model(s) shown. Please contact the official dealer for more information.

AVANZA-TMAP.pdf
1.60 MB
140 downloads
previous arrow
next arrow
previous arrownext arrow
Slider

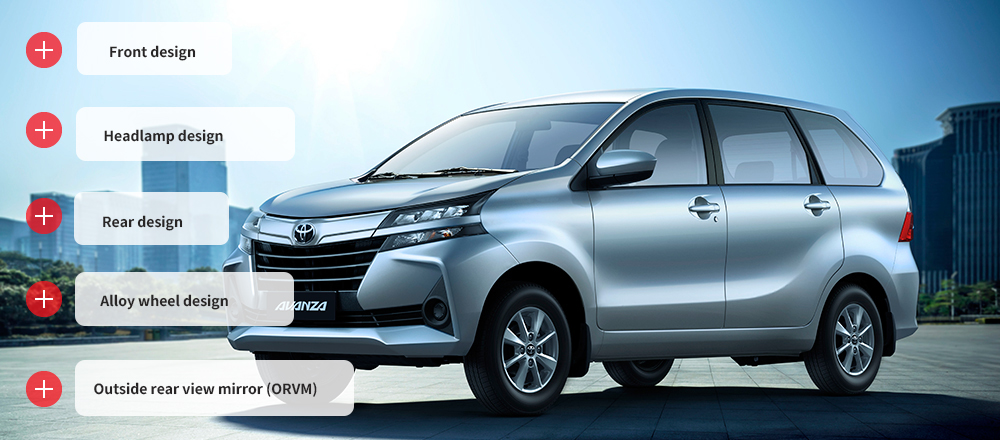

Exterior
Front design

The inverted trapezoid-shaped front grille gives the front face of the AVANZA a wider, more stable appearance.

Headlamp design

The four slit-shaped LED headlamps accentuate AVANZA’s fresh and sporty look.

Rear design

The rear combination lamp creates a sense of continuity with the surface of the back door, helping to convey a wide stance.

Alloy wheel design

The alloy wheels have a simple design with spokes radiating from the hub, giving an agile and sporty impression.

Outside rear view mirror (ORVM)

These large electric motor-equipped mirrors can be easily adjusted to provide good visibility.

Interior
Tiltable steering wheel

Tiltable steering wheel for a comfortable driving position.

Functionality

(A) The triple-meter design has a look of heightened precision and delivers superior visibility.
(B) Display audio system with a 6.8-inch WVGA capacitive touch screen comes with AM/FM/USB/AUX plus a DVD player and Bluetooth® connectivity. All passengers can enjoy a more natural, high resolution sound.
(C) Wireless door lock system.
(D) Power window with jam protection for the driver.

Comfortable seating for 7 passengers

Seven passengers can sit comfortably in the three rows of seats with their comfortable seatbacks and generous legroom.

Air Conditioning

The dual air-conditioning system efficiently sends air from the front to rear, bringing comfort to all passengers onboard. Temperature for the front and rear can be adjusted independently.

Storage space

Abundant storage spaces easily accommodate the changing demands of
a mobile lifestyle.
(A) Front console pocket
(B) Rear console box
(C) Door trim pockets (front)
(D) Door trim pockets (second-row)
(E) Third-row deck trim storage space & bottle holder

One-touch tumble seat

The one-touch tumble mechanism allows easy access to the third-row seats.

Luggage space

Flexible seat configuration makes it simple to create more luggage space. The rear door opens wide and tall to make loading and unloading easier.

Performance
1.3-liter Dual VVT-i twin-cam engine (1NR-VE)

The new engine with Dual VVT-i excels in both performance and environment friendliness.
The engine combines higher output and torque with quieter operation, greater fuel efficiency,
and reduced exhaust emissions.
Max. output (SAE net) kW/rpm 71/6000
Max. torque (SAE net) Nm/rpm 121/4200

Suspension

AVANZA combines MacPherson strut front suspension and 5-link coiled spring rear suspension with lateral rods. Improvements include meticulous optimization of alignment and spring constant to ensure handling stability and ride comfort.

Small turning radius

Despite its long wheelbase, the AVANZA’s turning radius is only 4.7 meters, making it superbly easy to maneuver on narrow or crooked streets.

Safety
Crash safety body

Steel plate with high tensile strength is used throughout the monocoque body, to meet the competing demands for both lighter weight and greater rigidity. In addition, the side impact beams help mitigate the impact of crash energy on occupants in the event of a side collision.

Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD)

Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD) helps maintain vehicle stability and driver control when braking.

SRS airbags

AVANZA has been thoroughly tested in both front and side impact crash tests. The body is excellent in ensuring occupants’ safety during collisions. The front seats (both driver and passenger seats) are equipped with SRS airbags.

Seatbelts

All seats are equipped with 3-point ELR seatbelts. Front seatbelts are equipped with pretentioners and force limiters.

Child restraint system

Rear seats are provided with ISOFIX lower anchors and top tether anchors.
