Rush

  F800LE-GQGFV
DIMENSIONS & WEIGHT
Overall length (mm)4435
Overall width (mm)1695
Overall height (mm)1705
Wheelbase (mm)2685
TreadFront (mm)1445
Rear (mm)1460
Approach angle31.0°
Departure angle26.5°
InteriorLength (mm)2490
Width (mm)1415
Height (mm)1195
Seating capacity7
Gross vehicle weight (kg)1870
ENGINE
Engine model code2NR-VE / 1.5-liter gasoline engine
Engine type16-valve DOHC, chain drive with Dual VVT-i
Piston displacement (cc)1496
Max. output (SAE net) (kW / rpm)77/6000
Max. torque (SAE net) (Nm / rpm)136/4200
Fuel typePetrol
Fuel tank capacity (liters)45
TRANSMISSION
Transmission type4-speed automatic transmission
CHASSIS
Steering gear typeRack & pinion
SuspensionFrontMacPherson struts
RearAxle type with 5-link
Stabilizer barFrontTorsion bar
RearTorsion bar
BrakesFrontVentilated discs
RearLeading-trailing drums
Minimum turning radius (tires) (m)5.2
Tires215/60R17
STANDARD EQUIPMENT (EXTERIOR)
Radiator grilleChrome (smoke)
HeadlampsLED (smoke + black)
Front fog & driving lampFog with chrome (smoke) bezel
Outer side rear view mirrorElectrically retractable – painted
Door outside handleColored, with lock switch
Rear combination lampsLED-type
Disc wheel17-inch aluminum
Roof rail
AntennaShark fin
STANDARD EQUIPMENT (INTERIOR)
Electric Power Steering (EPS)
Steering columnCollapsible, with tilt
Steering wheel / Steering switchesLeather / ●
Power window● (Driver side with jam-protection)
Audio systemDisplay audio (AM + FM + DVD + AUX + USB + BT + 8SP)
Air conditioningDual (automatic)
SpeedometerHigh color with chrome ring
Multi-information displayLCD (segment color)
Smart entry & push start
Rear seat (second-row)60:40 one touch split folding with slide mechanism
Rear seat (third-row)50:50 split folding
SAFETY SYSTEM
Brake control systemABS+EBD+HAC+VSC
6 SRS airbagsD+P+SIDE+CURTAIN
Seatbelts Front3-point ELR (Emergency Locking Retractor) x 2,
with pretensioners and force limiters
Second-row3-point ELR (Emergency Locking Retractor) x 3
Third-row3-point ELR (Emergency Locking Retractor) x 2
Seatbelt warningD & P: lamp and buzzer, RR*5: lamp
Child restraint systemISO-FIX + tether anchors
Parking assistBack sonar / Back camera

Specifications may vary from model(s) shown. Please contact the official dealer for more information.

Rush_Catalog_0612.pdf
1.77 MB
160 downloads
previous arrow
next arrow
previous arrownext arrow
Slider
Exterior
Front design

The front grille has a seamless design from the emblem to the headlamps, with four chrome-plated bars, to enhance Rush’s premium look. The longitudinal hood bulge and under guard emphasizes the SUV’s tough character.

Side design

Bold shape with sophisticated lines creates strongly curved surfaces that enhance Rush’s dynamic yet refined personality.

Rear design

The continuous surface from side to rear and the lower trapezoidal lines enhance stable feeling.

Built-in roof rails

Attach a carrier on the built-in roof rails to load large cargo items that don’t fit inside.

The rails give the exterior an active look.

Headlamp & Front fog lamp

LED headlamps:
Ensure excellent visibility at night and in low light while helping save power.

Front fog lamps:
Bulb-type front fog lamps with smoked bezels help enhance visibility.

Rear combination lamp

Horizontally slim LED-type rear combination lamps enhance the dynamic character of Rush’s rear design.

Rear spoiler

The rear roof spoiler is equipped with LED high-mount stop lamps.

Outside rear view mirror (electrically retractable)

The colored outside rear view mirror is electrically retractable.

Alloy wheels

17-inch alloy wheels are available.

Interior
Comfortable seating for 7 passengers

A spacious interior with room for up to seven occupants.

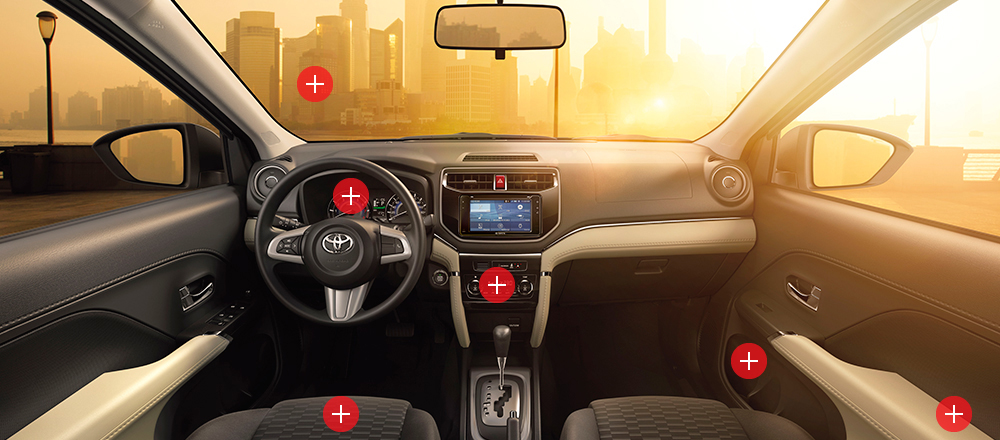

Functionality

(A) Smart Key
(B) Start button
(C) Combination meters with color LCD multi-information display
(D) Display audio system with a wide touch screen comes with DVD player and AM / FM / CD / USD / AUX / 8SP plus Bluetooth® connectivity
(E) Steering switches (audio & tel)
(F) Power window (Driver’s side with jam-protection)
(G) Accessory sockets (front / second-row / third-row)

Flexible seat configuration

The seats can be arranged to carry a variety of loads. For example, the second and third row seatbacks can be folded to create a large space for carrying long items and expand the luggage space. The driver’s seat is spacious too, enhancing comfort on long rides.

Air Conditioning

Air conditioning system
The excellent heating and cooling performance of the automatic air conditioning system keeps the interior at a comfortable temperature.

Rear air conditioner
The rear cooler integrated in the roof further boosts comfort in the rear seats, allowing all occupants to ride in comfort.

Storage space

The ample luggage space has room for four 5-gallon water bottles (approx. 20 liters each), even when all seats are occupied. The array of easy-to-use storage spaces includes 13 bottle holders, a glove box large enough for a box of tissues, and a wide tray that holds two smartphones side by side.

(A) Overhead console
(B) Rear console box
(C) Glove box
(D) Seatback pocket

Rear door

The rear door opens wide and tall to make loading and unloading easier.

Performance
1.5-liter Dual VVT-i twin-cam engine (2NR-VE)

Incorporates Dual VVT-i (Variable Valve Timingintelligent), which continuously optimizes intake and exhaust valve timing in response to driving conditions to deliver excellent performance in various conditions.

Max. output (SAE net) kW/rpm 77/6000
Max. torque (SAE net) Nm/rpm 136/4200

4-Speed Automatic Transmission

The 4-speed automatic transmission developed for the 2NR-VE engine has realized excellent power performance and fuel efficiency.

Suspension

MacPherson strut front suspension and 5-link rear suspension help achieve excellent handling and stability, ride comfort and maneuverability.

Small turning radius

The 5.2-meter small turning radius allows Rush to maneuver on narrow parking spaces and alleyways easily.

All-terrain capability

Designed to traverse rough roads, the high approach and departure
angles enable the Rush to navigate a variety of terrain.

1. Approach angle: 31.0°
2. Ground clearance: 220mm
3. Departure angle: 26.5°
4. Submersion height: 600mm

Safety
ASEAN NCAP

As a global car model with a 5-star ASEAN NCAP rating, Rush provides an outstanding level of safety. Features designed for functionality and safety include 6 SRS airbags, 3-point seatbelts for all passengers, Hill-start Assist Control (HAC), and LED headlamps. These features help provide driving confidence under various conditions.

Enhanced body rigidity

Steel plate with high tensile strength is used throughout the monocoque body, to meet the competing demands for both lighter weight and greater rigidity. In addition, the side impact beams help mitigate the impact of crash energy on occupants in the event of a side collision.

Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD)

Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD) helps maintain vehicle stability and driver control when braking.

Vehicle Stability Control

When sensors detect conditions likely to cause skidding, it helps prevent front or rear wheel slip by optimally controlling engine power and braking force.

Hill-start Assist Control

Hill-start Assist Control (HAC) helps to prevent the vehicle from rolling backward, for example when starting on a steep incline.

6 SRS airbags

Equipped with SRS driver airbag, SRS front passenger airbag, SRS side airbags (front seats) and SRS curtain-shield airbags (front and rear seats).

Seatbelts / Headrests

All seatbelts are equipped with 3-point ELR seatbelts. Large headrests in the second and third row seats are designed for head support.

Child restraint system

Second row seats are provided with ISOFIX anchors for child seat installation. Additionally, the back door is equipped with child protectors.

Parking assist

While parking, the back camera monitor displays the rear view, allowing the driver to reverse smoothly. In addition, ultrasonic sensors detect obstacles as the vehicle approaches them while reversing and alert the driver with a buzzer as well as on the multi-information display.
