Rear Design
×

Outer Mirrors
×

Wheels
×

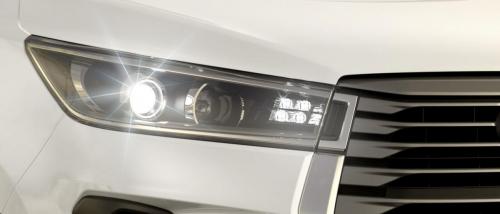

LED Headlamps & Daytime Running Light
×

LED Fog Lamp
×

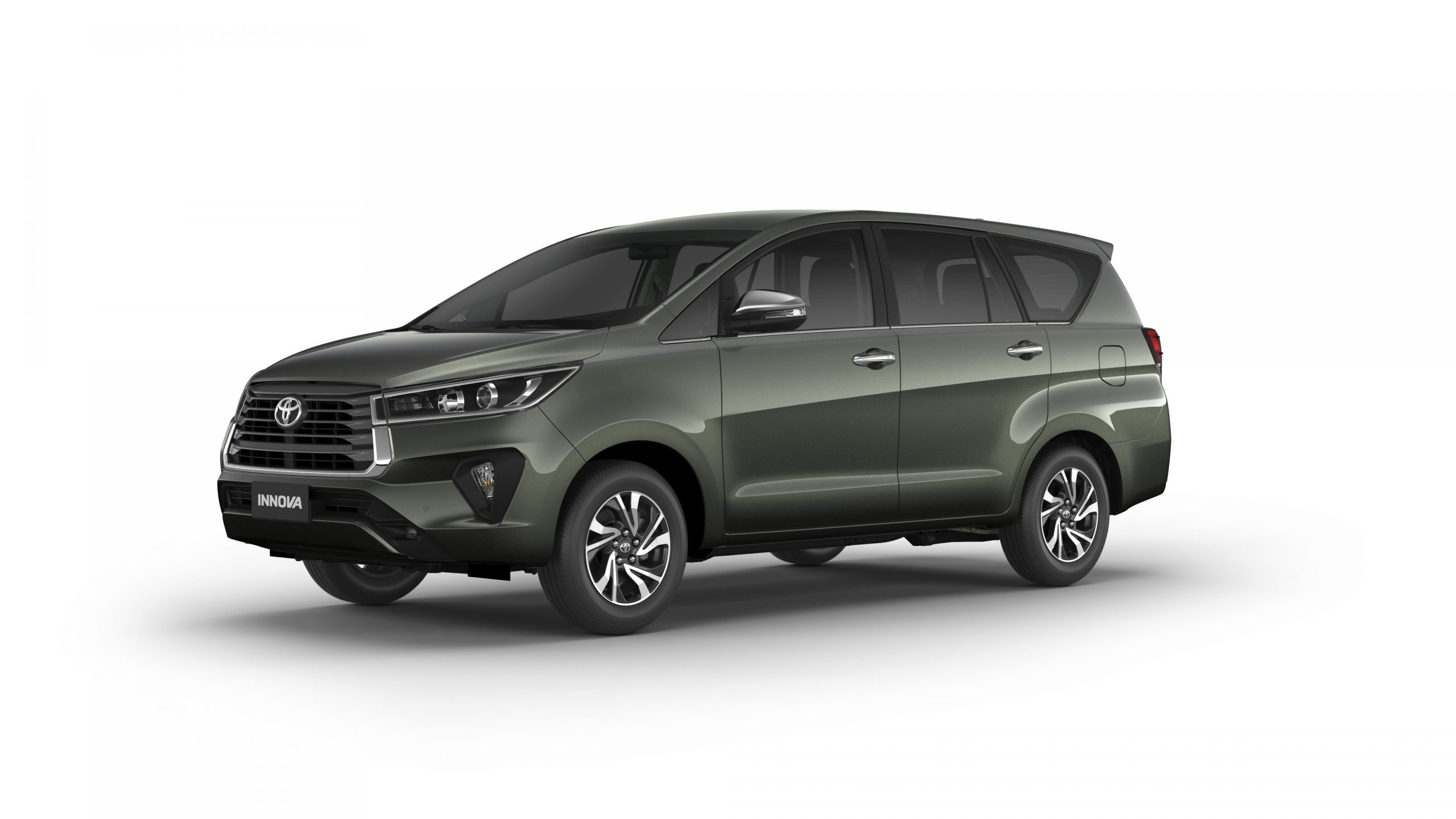

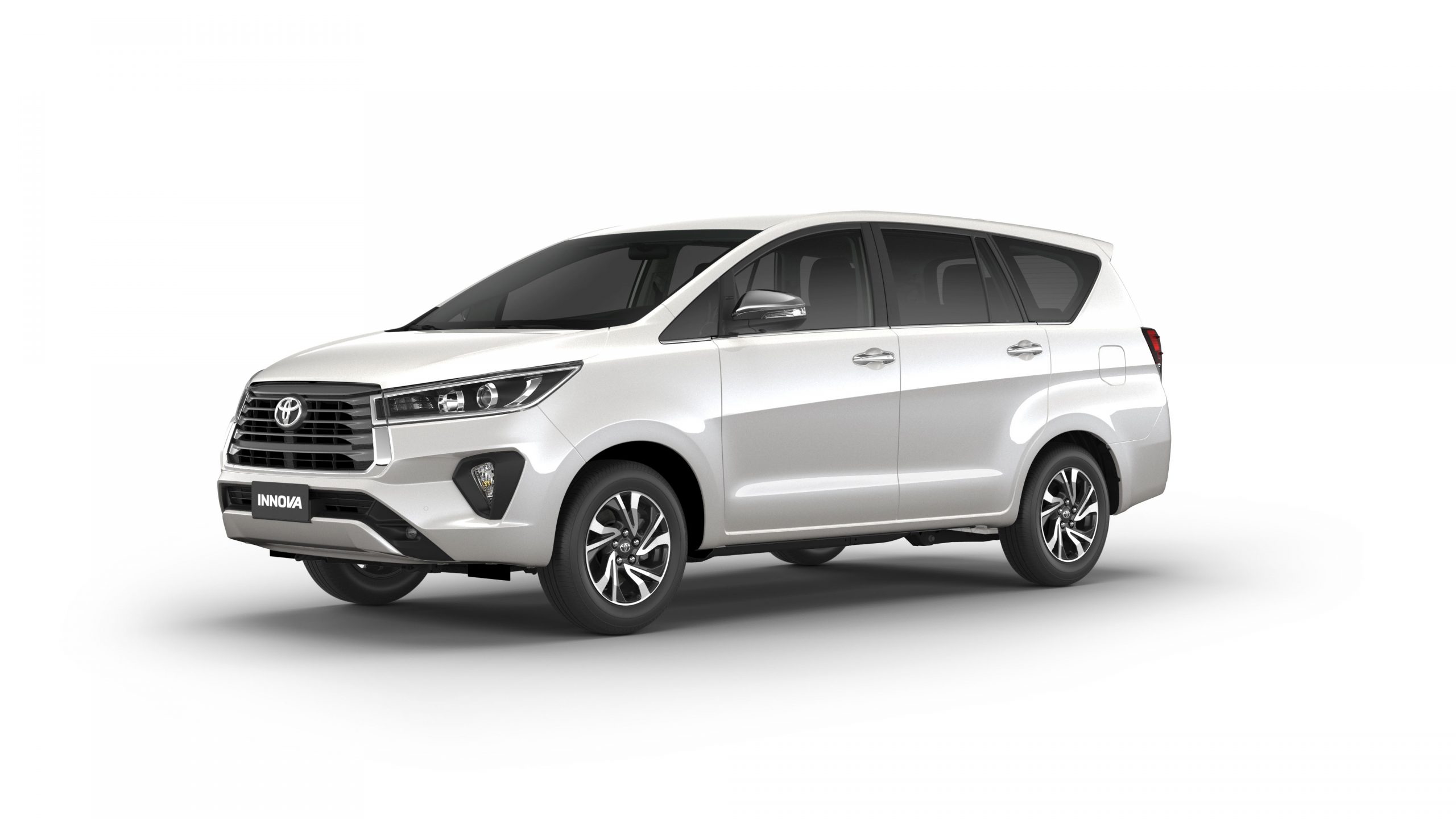

Side View
×

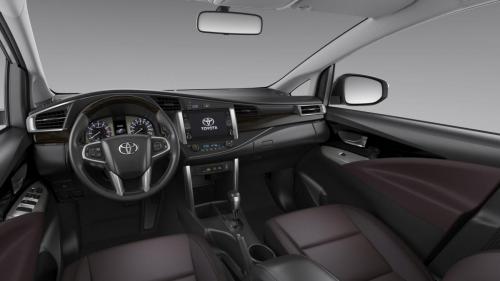

Cockpit Design
×

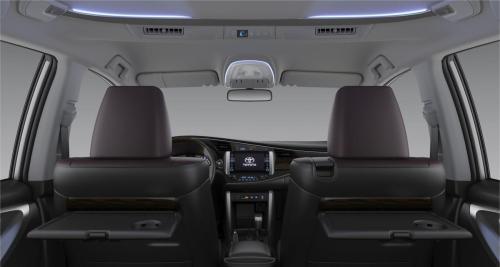

Comfortable Seating for Eight Occupants
×

Ambient Lighting
×

Air Conditioning
×

Audio System
An audio system that meets the progressive demands of the multimedia age, such as enhanced connectivity with external devices, is equipped.
×

Storage Spaces
Abundant storage spaces accommodate the diverse demands of an active lifestyle.
×

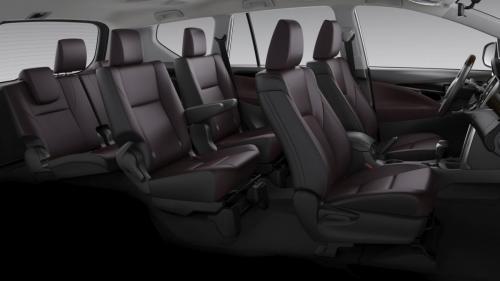

Seat Configuration
×

Luggage Room
×

Functionality
×

Interior Colors
×

Frame Structure
The high-rigidity structure contributes to exceptional toughness under harsh road conditions as well as excellent handling performance. It als ohelps produce a smooth ,quiet ride and a reassuring feeling of safety.
×

1TR-FE Engine
2.0-liter petrol engine
Max. Output: 102 kw/5,600rpm
Max. Torque: 183 Nm/4,000rpm
×

Suspension
The front and rear suspension is optimized to provide excellent stability and control, with a flat smooth ride.
×

6 Super ECT (Electronically Controlled Transmission)
A super intelligent 6-speed automatic transmission produces outstanding driving performance and fuel efficiency.
×

Drive Mode Switch
Allows the driver to select ECO mode for optimum economy or POWER mode for enhanced acceleration.
×

Back Monitor
×

Hill-start Assist Control (HAC)
×

SRS Airbags
×

Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD)
×

Vehicle Stability Control (VSC)
×

Parking Assist Sensors

DIMENSIONS & VEHICLE WEIGHT | ||
---|---|---|
Overall | Length (mm) | 4,735 |
Width (mm) | 1,830 | |
Height (mm) | 1,795 | |
Wheelbase | (mm) | 2,750 |
Tread | Front (mm) | 1,540 |
Rear (mm) | 1,540 | |
Minimum running ground clearance | (mm) | 200 |
Minimum turning radius | Tire (m) | 5.4 |
Gross vehicle weight | Total (kg) | 2,350 |
Curb weight | Total min. options (kg) | 1,700 |
Total max. options (kg) | 1,725 | |
Interior | Length (mm) | 2,600 |
Width (mm) | 1,490 | |
Height (mm) | 1,245 | |
ENGINE | ||
Engine model code | 1 TR-FE(2.0-liter petrol engine) | |
Engine type | 4-cyl. in-line type 16-valve DOHC | |
Displacement | (cc) | 1,998 |
Bore x stroke | (mm) | 86.0 x 86.0 |
Compression ratio | (mm) | 10.4 |
Max. output (SAE net) | (kW / rpm) | 102/5,600 |
Max. torque (SAE net) | (Nm / rpm) | 183/4,000 |
Fuel system | Fuel Injection | |
Fuel type | Petrol | |
Fuel tank capacity | (liters) | 55 |
CHASSIS | ||
Drive train | 4x2 | |
Transmission type | 6-speed sutomatic transmission | |
Suspension | Front | Double wishbone (coil springs, with a stabilizer bar) |
Rear | Four link with lateral control rod (coil springs) | |
Brake type | Front | Ventilated disc brake with floating caliper 1-cylinder |
Rear | Leading-trailing drum brake | |
Tires | 205/65R16 | |
Wheels | Alloy wheel | |
STANDARD EQUIPMENT | ||
Headlamps | LED projector + halogen lamps | |
Front fog & driving lamp | With(LED) | |
Daytime running light system | With | |
Rear combination lamps | Bulb-type | |
Outside rear view mirror | Chrome (electric remote + retractable + welcome light) | |
STANDARD EQUIPMENT (INTERIOR) | ||
Steering wheel | Wooden + leather* | |
Steering switch | Audio & tell & voice recognition + multi-information display | |
Steering column | Tilt & telescopic electric lock | |
Drive mode switch | With (ECO + POWER) | |
Multi-information display | With (color TFT) | |
Economy meter | With (eco lamp + zone display) | |
Front seat | Power driver seat | |
Second row seat | Captain one touch tumble slide seats | |
Third row seat | One touch easy space-up | |
Seat cover material | Leather* | |
Audio system | 8-inch display audio | |
Speaker system | 6-speakers | |
Air Conditioning | Front | Automatic air conditioner |
Rear | Automatic rear cooler | |
Starting system | Push start switch | |
Wireless door lock | With (smart entry system + answer back system) | |
ACCESSORY CONNECTOR | Front: DC 12v +Rear: DC 12V | |
SAFETY SYSTEM | ||
Anti-lock Brake System (ABS) | With |
|
Vehicle Stability Control (VSC) | With | |
Hill-start Assist Control (HAC) | With | |
SRS airbags | Front (driver + passenger), side, curtain-shield, knee (driver) | |
Back monitor | With |
