Camry

  2.0-liter Petrol Engine
ASV71L-JETGHU
 2.5-liter Petrol Engine
ASV70L-JETQKU
DIMENSIONS & VEHICLE WEIGHT
Overall length (mm)4885
Overall width (mm)1840
Overall height (mm)1455
Wheelbase (mm)2825
Tread(mm)Front/Rear1590 / 16151580 / 1605
Ground clearance(mm)140
Interior length X width X height (mm)2030 X 1535 X 11852030 X 1535 X 1125
Gross vehicle weight (kg)20302030
CHASSIS
SuspensionFront/RearMacPherson strut / Double wishbone
BrakesFront/RearVentilated disc / Solid disc
Minimum turning radius (tires) (m)5.75.8
Fuel tank capacity (liters)60
Tires215/55R17235/45R18
ENGINE 2.0-liter petrol (6AR-FSE) 2.5-liter petrol (2AR-FE)
Type4-cyl. in-line twin cam 16-valve with Dual VVT-i
Piston displacement (cc)19982494
Max. output (SAE net, unleaded)
(kW / rpm)
123 / 6,500135 / 6,000
Max. torque (SAE net, unleaded)
(Nm / rpm)
199 / 4,600235 / 4,100
Fuel systemElectronic
STANDARD EQUIPMENT (EXTERIOR)
HeadlampsLEDLED (High)
Front fog & driving lamp● (LED)
Outer side rear view mirror
(electrically retractable, hydro, wide view)
● (With reverse, memory)
Clearance lamp● (High)
Front turn signal lamp● (High)
Daytime running light system● (LED)
Rear combination lampsTail & stop (LED)LED (High)
Disc wheel17-inch aluminum18-inch aluminum
AntennaRear glass diversity + GPS
STANDARD EQUIPMENT (INTERIOR)
Electric Power Steering (EPS)● (Parallel rack electric power steering system)
Steering columnTiltable & telescopicTiltable & telescopic, power with memory
Steering wheel / Steering switchesLeather / ● (Audio/Hands free/Multi-information display control)
Cruise control
Shift switchSequentialSequential + paddle shifters
Integrated sport drivingECO/SPORT/NORMAL
Sun shadeRear window (power)Rear window (power), rear door (manual)
Moon roofMoon roof (tiltable & slidable)
Seat cover materialLeatherSmooth leather
Front seat slide and reclining● (with memory)
Rear seatFixed with trunk-through functionPower reclining with trunk-through function
Rear armrest● (cup holder, lid)● (cup holder, lid, module switches)
Air conditioningDual automatic air conditioning3-zone automatic air conditioning
Speedometerkm/hkm/h (high)
Multi-information display● (4.2-inch)● (7-inch)
Audio system7-inch DCU/DVD/6SP8-inch DCU/DVD/JBL/9SP
EMV & navigation system
SAFETY SYSTEM
Brake control systemABS+EPD+HAC+VSC
7 SRS airbagsD+P+D-KNEE+SIDE+CURTAIN
SeatbeltsFront3-point ELR (Emergency Locking Retractor) x 2
Rear3-point ELR (Emergency Locking Retractor) x 3
Seatbelt warningD & P: lamp and buzzer
Child restraint systemISO-FIX (x 2) + tether anchors
Parking sensorsBack sonar + corner sensor
Lane change assist● (BSM+RCTA)
Back monitorBack monitor with static lineBack guide monitor

Specifications may vary from model(s) shown. Please contact the official dealer for more information.

CAMRY-TMAP.pdf
3.80 MB
89 downloads
Camry Platinum White Pearl Mica (089)

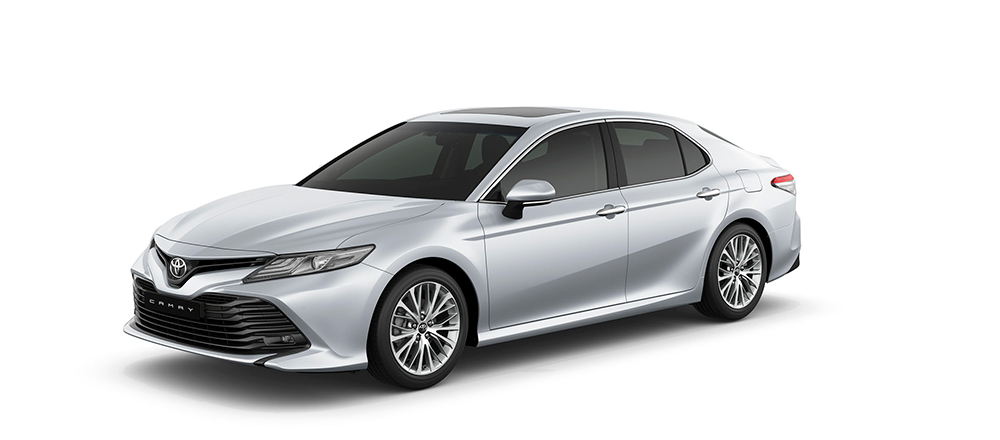

Camry Silver Metallic (1D4)
Camry Attitude Black Mica (218)
Camry Burning Black Crystal Shine Glass Flake (222)
Camry Red Mica (3T3)
Camry Phantom Brown Metallic (4W9)
Camry Graphite Metallic (4X7)
previous arrow
next arrow

Camry Platinum White Pearl Mica (089)
Camry Silver Metallic (1D4)
Camry Attitude Black Mica (218)
Camry Burning Black Crystal Shine Glass Flake (222)
Camry Red Mica (3T3)
Camry Phantom Brown Metallic (4W9)
Camry Graphite Metallic (4X7)
previous arrow
next arrow
Exterior
Exterior Design

The exterior design focuses on a sporty yet highly refined impression. In every detail, the surface and line quality of the body has been enhanced, creating a distinctive character.

Headlamp

In addition to providing good visibility, the bright LED headlamps have an instantly-recognizable distinctive design that accentuates the vehicle’s individuality at night.
*2.5L Model only

Rear Combination Lamp

Tail lamps with a special luminescence appeal a sense of innovation to following vehicles.
*2.5L Model only

Moon Roof

The wide opening size provides a comfortable cabin space with a sense of openness.
*2.5L Model only

Interior
There’s No Place You’d Rather Be

Sit back and relax in the light-filled, spacious comfort of the cabin. The refined quality and comfort are evident in the superb functionality, exceptional quietness, and bold and delicate contrast in textures and finishes.

Head-Up Display (HUD)

A color head-up display is available on the lower part of the windshield glass, allowing necessary information to be checked with minimal driver eye movement.
*2.5L Model only

Audio / Navigation System

An 8-inch touch-panel display provides easy control of the 9-speaker JBL audio system with numerous high sound quality technology items and integrated DVD player. The navigation system searches and provides optimal route guidance.
*2.5L Model only

Triple Zone Independent Temperature Control

Triple zone independent temperature control is available to provide independent air conditioning for each passenger in the driver’s seat, front passenger’s seat, and rear passengers’ seats in accordance with their desires.
*2.5L Model only

Storage Spaces

1. Glove box
2. Center console box
3. Rear seat trunk through
4. Rear seat armrest cup holder

Sunshades

A power sunshade for the rear window and manual sunshade for the rear doors offer privacy protection and help create a calm atmosphere for rear-seat passengers.

*Manual sunshade for the rear doors available on 2.5L Model only

Luggage Room

The 40/20/40 split and power reclining rear seats feature a trunk-through function, enabling longer items to be stored in the luggage room.
*2.5L Model only

Performance
2.5­liter Engine (2AR-FE)

Max. output: 135kW/6000rpm
Max. torque: 235Nm/4100rpm

*2.5L Model

2.0­liter Engine (6AR-FE)

Max. output: 123kW/6500rpm
Max. torque: 199Nm/4600rpm

*2.0L Model

Suspension

The front MacPherson strut and rear double wishbone suspension contributes to flat, stable ride comfort with minimal shock and vibration, providing stable cornering for enjoyable driving, together with a comfortable and outstanding ride, even on long drives.

Integrated sport driving

In addition to the low fuel consumption of ECO mode, the newly adopted SPORT mode enables the driver to enjoy sporty driving.
*2.5L Model only

Toyota New Global Architecture

The new TNGA platform contributes to the stability, agility and safety of Toyota vehicles. Experience the enhanced technology that leads to better driving performance.

STABILITY
The low, center-of-gravity package with strengthened ring structures around the door openings and behind the back seats contribute to excellent handling stability.

AGILITY
The front MacPherson strut and rear double wishbone suspension provides stable cornering for enjoyable driving, together with a comfortable and outstanding ride.

VISIBILITY
Camry features a reduced cowl height and thinner front pillars as well as taller windows for better visibility.

Paddle Shifters

Integrated into the steering wheel, they enable intuitive manual up- and down-shifting while keeping your hands on the steering wheel.
*2.5L Model only

Safety
Crash Safety Body

Comprised of energy-absorbing zones on the front, rear and both sides that help absorb impact energy in a collision and a high integrity cabin. It also incorporates a body structure to help reduce injury to pedestrians.

7 SRS Airbags

Camry is equipped with an SRS driver airbag, an SRS front passenger airbag, SRS side airbags for the front passengers, SRS curtain-shield airbags for front and rear passengers, and an SRS knee airbag for the driver.

Vehicle Stability Control

VSC automatically limits drive train output and applies selective braking to individual wheels in order to maintain stability if the vehicle is experiencing a strong understeer or oversteer tendency.

Brake Hold Function

Vehicles equipped with Electric Parking Brake (EPB) also feature a brake hold function, reducing driver workload while driving in traffic or waiting at a traffic light.

ASEAN NCAP

As a global car model with a 5-star ASEAN NCAP rating, Camry provides an outstanding level of safety. Features designed for functionality and safety include 7 SRS airbags, 3-point seatbelts for all passengers, Hill-start Assist Control (HAC), LED headlamps, and many more. These features help provide driving confidence.

Rear Cross Traffic Alert (RCTA)

When backing up, the RCTA function uses quasi-millimeter wave radar to detect vehicles approaching difficult-to-see areas behind your vehicle. When an approaching vehicle is detected, the RCTA function alerts the driver using a buzzer and indicators on the outer mirrors.
*2.5L Model only

Back Monitor

Supports smooth reversing operations when perpendicular or parallel parking, showing the rear view taken by a camera integrated into the rear of the vehicle on the display together with guidelines to help the driver steer.

Blind Spot Monitor System (BSM)

When vehicles in adjacent lanes that are not visible in the door mirrors are detected, an LED indicator lights up in the relevant door mirror and starts flashing when the driver activates the side turn signal.
*2.5L Model only
