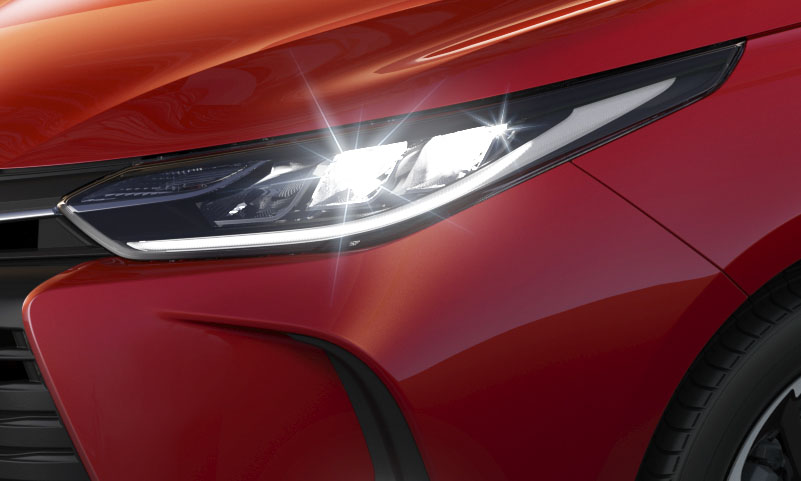

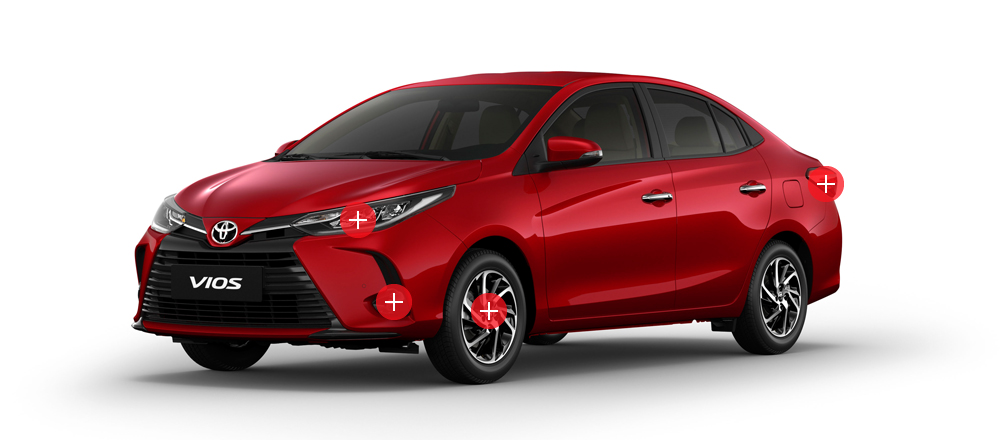

LED Headlamp
Headlamps, upper grille and lowe grille consolidated in a fluent, one-motion design emphasize the wide and low stance of the New VIOS. In addition, LED light sources have been adopted for headlamps, fog lamps, and daytime running lights.
×

Front Fog Lamp
×

Wheels
×

Rear Combination Lamp
×

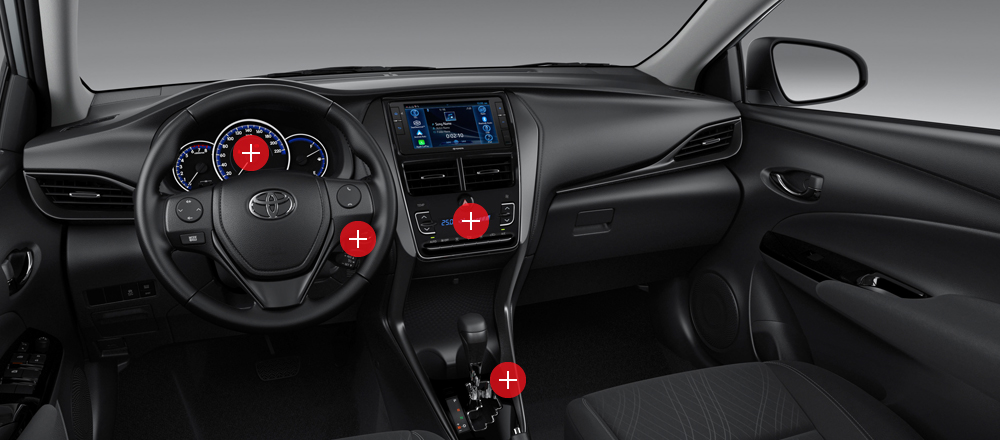

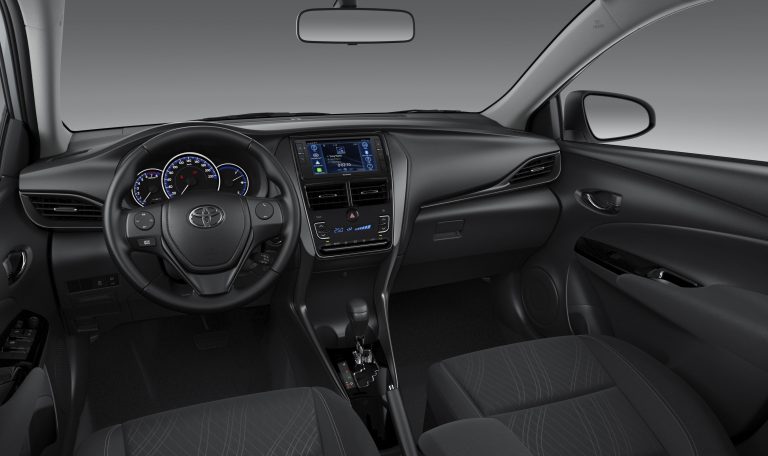

Combination Meter
Optitron meters with multi-information display offer superior visibility and ease of use.
×

Smart Entry & Start System
With the Smart Key, you can unlock and lock the doors just by touching a door handle, and you can start the engine just by stepping on the brake and pressing the Start/Stop button.
×

Automatic Air Conditioning System
A stylish, easy-to-use auto air conditioner with built-in clean air filter helps to keep cabin air clean and maintain a comfortable temperature.
×

Interior Illumination
Front console cup holders are equipped with an LED shower light, conveying an air of advanced technology.
×

Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD)
×

Vehicle Stability Control (VSC)
×

Hill-start Assist Control (HAC)
×

ASEAN NCAP 5-star
×

SRS Airbags
×

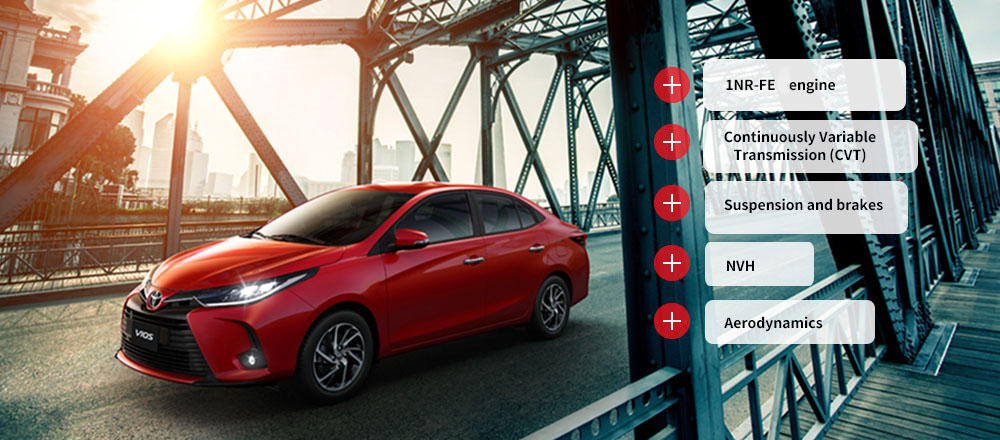

1NR-FE Engine
The 1NR-FE engine generates ample power along with high fuel efficiency and low emissions.
×

Continuously Variable Transmission (CVT)
The CVT with manual override gives you a smooth, enjoyable drive with sequential shifting. For a sporty shift feel, you can use the shift-up / shift-down lever.
×

Suspension and Brakes
The suspension system has improved its coil, springs and shock absorbers to provide superior ride comfort. The brakes offer excellent stoppign capability.
×

NVH
×

Aerodynamics

DIMENSIONS & WEIGHT | ||
---|---|---|
Overall | Length(mm) | 4,420 |
Width(mm) | 1,730 | |
Height(mm) | 1,495 | |
Wheelbase | (mm) | 2,550 |
Tread | Front(mm) | 1,475 |
Rear(mm) | 1,460 | |
Miniumum running ground clearance | (mm) | 153 |
Minimum turning radius | Tire(m) | 5.1 |
Gross vehicle weight | Total(kg) | 1,550 |
Curb weight | Total min. options(kg) | 1,090 |
Total max. options(kg) | 1,130 | |
Seating capacity | Persons | 5 |
Interior | Length(mm) | 1,895 |
Width(mm) | 1,420 | |
Height(mm) | 1,205 | |
ENGINE | ||
Engine model code | 1NR-FE(1.3-liter petrol engine) | |
Engine type | 4-cylinders, In-line type 16-valve DOHC with Dual VVT-i | |
Displacement | (c.c.) | 1,329 |
Bore x stroke | (mm) | 72.5 x 80.5 |
Compression ratio | 11.5 | |
Max. output(SAE net) | (kW/rpm) | 73/6.000 |
Max. torque(SAE net) | (Nm/rpm) | 123/4,200 |
Fuel system | Fuel injection | |
Fuel type | Petrol | |
Fuel tank capacity | (liters) | 42 |
CHASIS | ||
Drive type | FF (Front engine / Front drive) | |
Transmission type | Continuiosly Variable Transmission(CVT) | |
Suspension | Front | MacPherson struts |
Rear | Torsion beam | |
Brake type | Front | Ventilated disc brake with floating caliper 1-cylinder |
Rear | Solid disc brake with floating caliper 1-cylinder | |
Tires | 185/60R15 | |
Wheels | Alloy wheel | |
Steering gear type | Rack & pinion | |
STANDARD EQUIPMENT(EXTERIOR) | ||
Headlamps | LED | |
Front fog & driving lamp | With(LED) | |
Daytime running light system | With | |
Rear combination lamps | LED-type with line guide | |
Outside rear view mirror | Electrically retractable - colored with turn indicator | |
STANDARD EQUIPMENT(INTERIOR) | ||
Steering wheel | Leather | |
Steering switch | Audio & bluetooth switches | |
Steering column | Tilt | |
Multi-information display | With | |
Economy meter | With | |

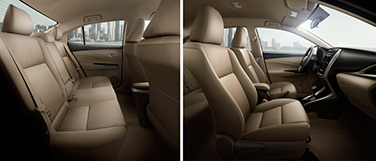

Rear seat | 60:40 split folding | |
Seat cover material | Fabric with stitches | |
Audio system | Display audio | |
Speaker system | 6-speakers | |
Air conditioning | Automatic air conditioner | |
Starting system | Push start switch | |
Wireless door lock | Smart system | |
Safety system | ||
Anti-lock Brake System(ABS) | With | |
Vehicle Stability Control(VSC) | With | |
Hill-start Assist Control(HAC) | With | |
SRS airbags | Front(driver + passenger), side, curtain-shield, knee(driver) | |
Back sonar | With | |
Back monitor | With |
Specifications may vary from model(s) shown. Please contact the official dealer for more information.
