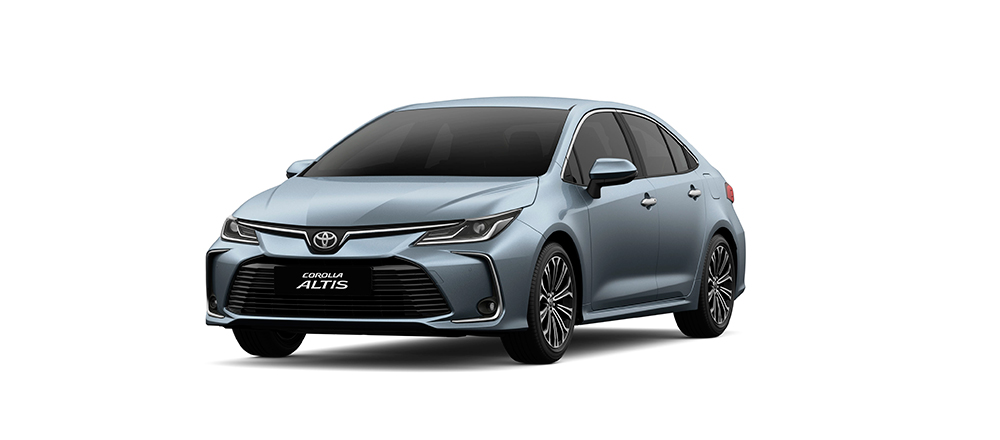

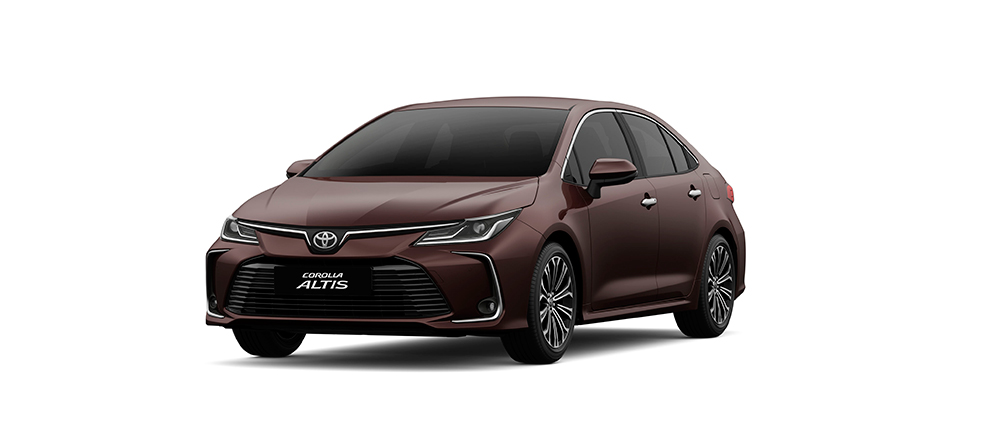

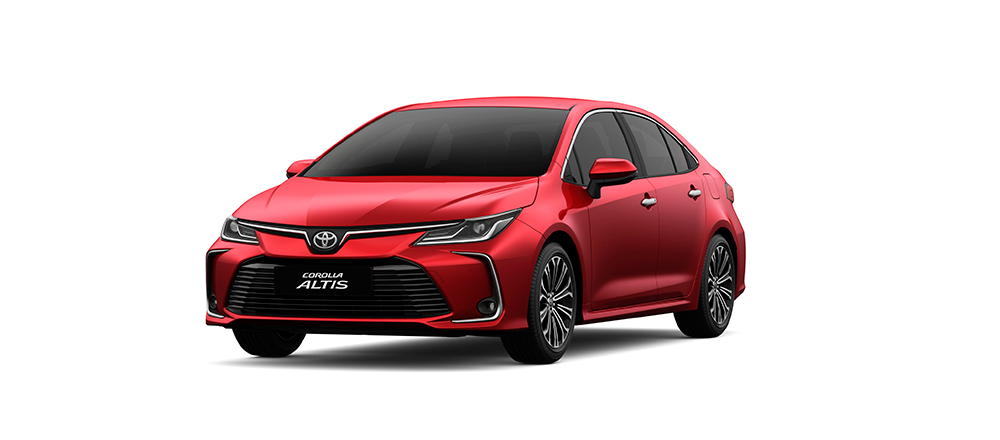

Corolla Altis

SFX C2
Model CodeZRE210L-GEXVKM
Seating Capacity (Door)5(4)
DIMENSIONS & WEIGHT
OverallLength (mm) 4630
Width (mm)1780
Height (mm)1455
Wheelbasemm2700
TreadFront (mm)1531
Rear (mm)1535
OverhangFront (mm)935
Rear (mm)995
Minimum running ground clearancemm149
Gross vehicle weightkg1745
Fuel tank capacityliters50
CHASSIS
Transmission typeContinuously Variable Transaxle
BrakesFrontVentilated disc brake with floating caliper 2-cylinder
RearSolid disc brake with floating caliper 1-cylinder
SuspensionFrontMacPherson Strut
RearDouble Wishbone
Stabilizer barFrontTorsion bar
RearTorsion bar
Steering gear typeRack & pinion
Min. turning radiusTire(m)5.4
Tires225/45R17
ENGINE
Engine type1.6-liter gasoline (1ZR-FE)
Number of cylinders & arrangement4 cylinders, in-line
Valve mechanism16-valve DOHC (with Dual VVT-i)
Bore x strokemm80.5 x 78.5
Displacementc.c.1598
Fuel typePetrol
Max. outputkW / rpm90 /6000
Max. torqueNm / rpm153 /5200
STANDARD EQUIPMENT (EXTERIOR)
HeadlampsBi-beam LED (with Automatic High Beam)
Front fog & driving lampLED
Daytime running light systemLED
Rear combination lampsLED (Stop/Turn) + Multi LED (Tail)
Disc wheel17-inch aluminum
Wireless door lock systemSmart Key
STANDARD EQUIPMENT (INTERIOR)
Steering wheel3-Spoke Leather
Steering columnTilt & telescopic
Front seat8-way power (Driver), Manual (Passenger)
Rear seatSplit Folding (60 : 40)
Seat cover materialLeather + Double Stitch
Audio system8-inch Display Audio, AM/FM/Bluetooth, Compatible with Apple CarPlayTM and Android AutoTM
Speakers6 speakers
Audio Jack (lower center instrument panel)● (USB)
Air conditioningAutomatic A/C (Dual Mode)
Rear air conditioning vents
Speedometer7-inch Display Meter (Analog/Digital)
Eco meterECO Driving Indicator
Accessory connector (Inside center console box)USB x 1, DC 12V x 1
SAFETY SYSTEM
Toyota Safety SensePre-Collision System (PCS)
Dynamic Radar Cruise Control (DRCC)
Lane Departure Alert (LDA) with Steering Control/
Lane Tracing Assist (LTA)
Automatic High Beam (AHB)
Anti-lock Brake System (ABS)
Vehicle Stability Control (VSC)
Hill-start Assist Control (HAC)
Electric Parking Brake (EPB)
Parking assistClearance sonar + back sonar (6 sensors) Back monitor (with guidelines)
SRS airbags7 airbags (driver + passenger + driver knee + front seat side + front curtain)

Specifications may vary from model(s) shown. Please contact the official dealer for more information.

COROLLA_Catalog.pdf
1.23 MB
74 downloads
previous arrow
next arrow
previous arrownext arrow
Slider

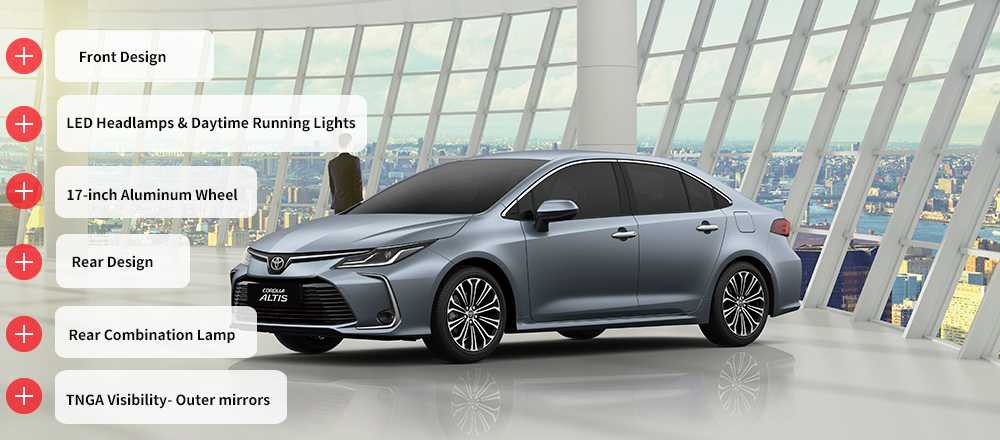

Exterior

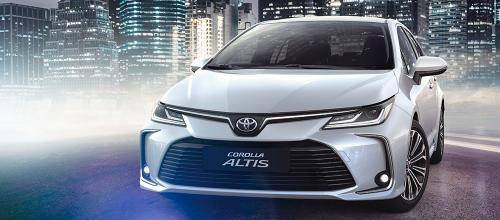

Front Design

Prominent center mass and large trapezoid lower grille emphasize the Corolla’s imposing presence, while the sleek wrap-around headlamps and broad bumper corners further accentuate the vehicle’s wide stance.

LED Headlamps & Daytime Running Lights

Advanced LED illumination technologies provide excellent nighttime visibility and contribute to reduced energy consumption.
LED light-guided DRL and chrome-plated ornamentation create a distinctive, double J-shaped appearance.

17-inch Aluminum Wheel

Black and bright machine-finished twin spokes express luxury and sportiness.

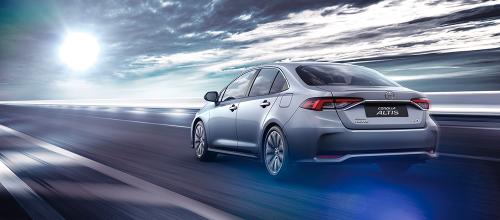

Rear Design

Widely protruding rear combination lamps and bumper corners are combined with the tapered body to exhibit a wide and imposing stance.

Rear Combination Lamps

Alternating shapes of the chrome-plated license garnish and multi-LED tail lamp create an impressive apprearance with a precise feel.

TNGA Visibility- Outer mirrors

The outer mirrors have been relocated from the triangle panel to the door panel, thus contributing to securing excellent visibility around the front pillar.

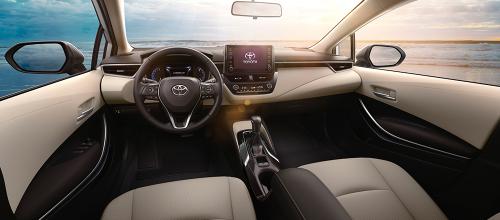

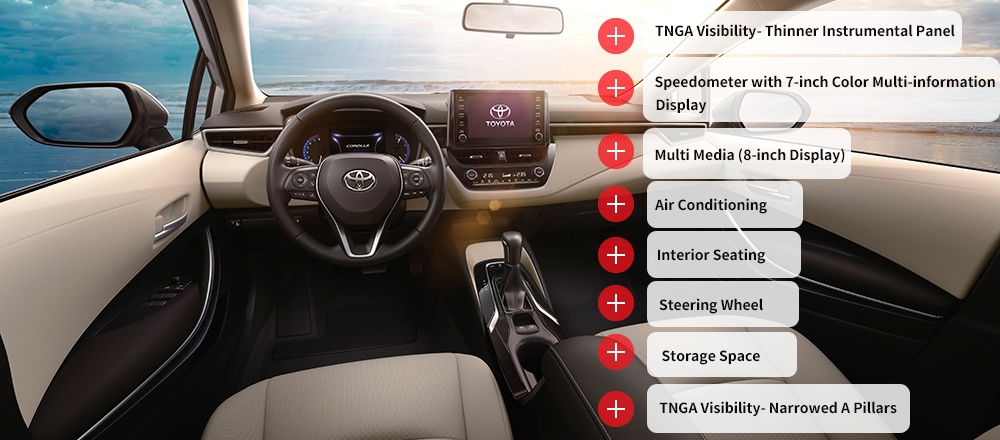

Interior
TNGA Visibility- Thinner Instrumental Panel

Through the TNGA structure, a thinner instrument panel has been achieved. Compared with the current model, the imposing feeling has been further reduced, and open feeling and low CoG structure has been realized.

Speedometer with 7-inch Color Multi-information Display

Advanced and precise presentation of the meters enable the driver to obtain essential information at a glance.

The 7-inch color multi-information display in the center can be switched between analog and digital speedometer displays.

Multi Media (8-inch Display)

Features an electrostatic touch-panel display with flick operation, enabling easy operation.

Apple CarPlayTM and Android AutoTM enable a smartphone to be connected with the on-board display and in-vehicle speakers.

Air Conditioning

Compact and highly efficient Dual Zone Automatic Air Conditioner provides powerful cooling, while reducing both fuel consumption and noise.

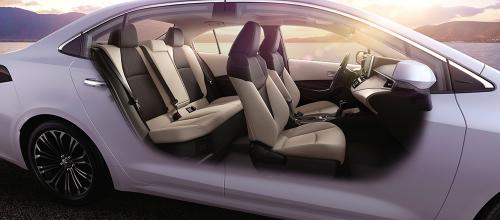

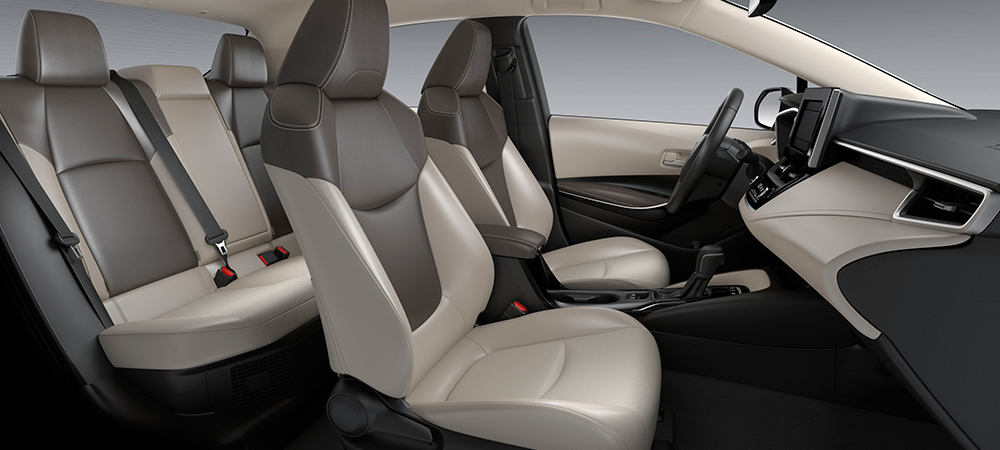

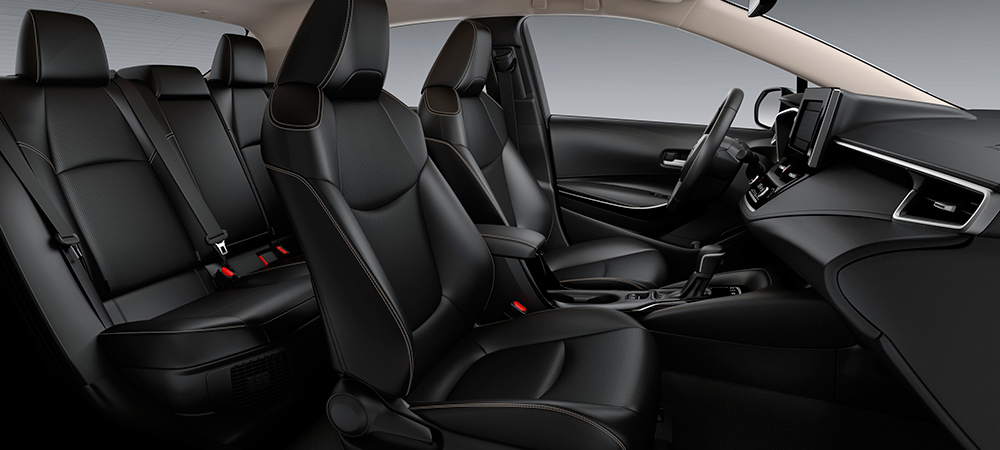

Interior Seating

Optimized seat structure, pressure dispersing cushion materials, and large center armrest ensure exceptional level of comfort and support.

TNGA Visibility- Outer mirrors

The outer mirrors have been relocated from the triangle panel to the door panel, thus contributing to securing excellent visibility around the front pillar.

Steering Wheel

Genuine leather grip and ergonomically placed controls enhance the pleasure of driving.

Storage Space

Glove box
Cupholders
Front door pockets
Rear door pockets with bottle holders
Center console box
60/40 split, fold-down rear seatbacks
Luggage compartment

TNGA Visibility- Narrowed A Pillars

Slimmer front pillars allow unobstructed visibility.

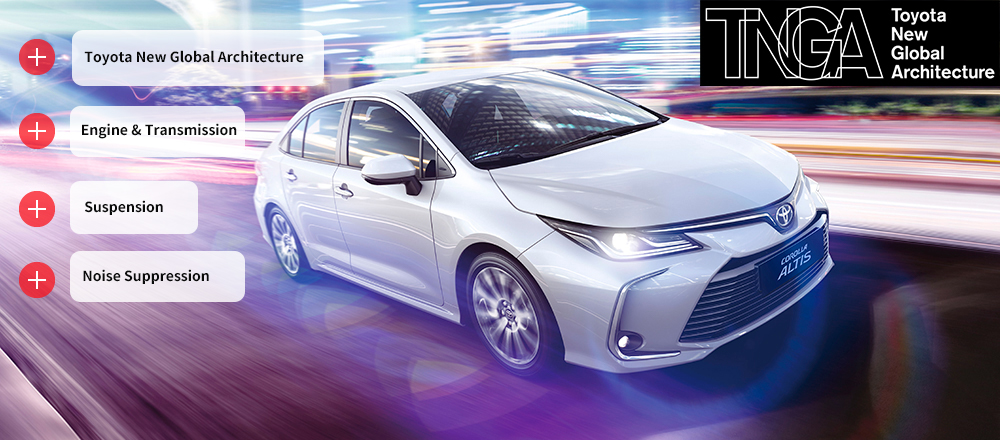

Performance
Toyota New Global Architecture

A new platform with a low center of gravity contributes to the Corolla’s emotional design, to be enjoyed together with the outstanding stability, agile handling, high-rigidity body and excellent ride comfort.
Components shown may differ from actual specifications.

Engine & Transmission

7-speed Sequential Shiftmatic Continuously Variable Transmission (CVT) incorporates a new cooperative control with the electronically-controlled throttle. Mated with the 1.6-liter engine with Dual VVT-i (1ZR-FE), the drivetrain ensures a high level of drivability, smoothness, quietness, and fuel efficiency.

Suspension

MacPherson struts on the f ront and newly-developed trailing wishbone suspension on the rear contribute to a comfortable ride that minimizes shock and vibration, together with excellent handling stability and high-quality driving characteristics.

Noise Suppression

Sound absorbing and insulating layers have been strategically placed around the engine compartment to reduce noise penetrating into the cabin.

Hydraulic engine mount further reduces noise and vibration.

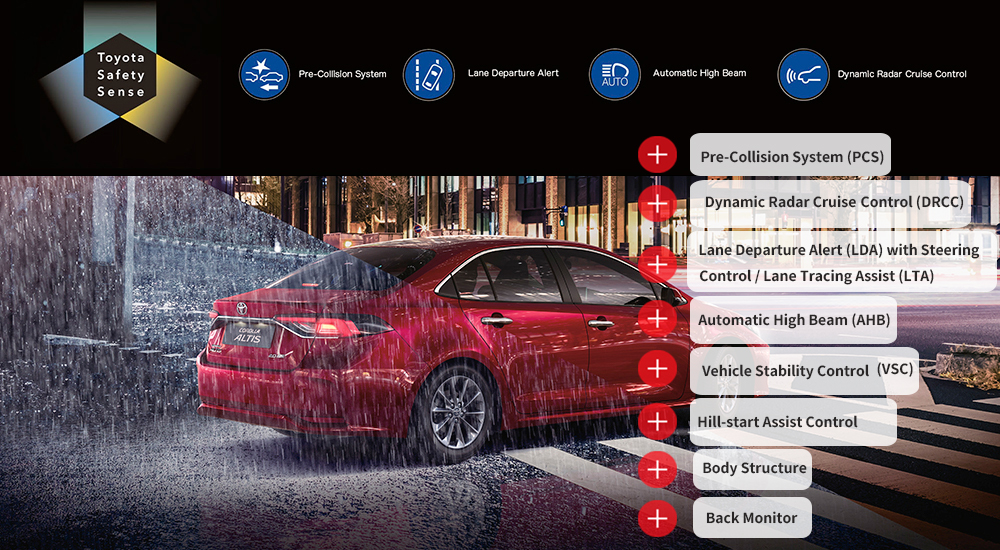

Safety
Pre-Collision System (PCS)

PCS uses sensors to detect other vehicles in front of the vehicle. If the system judges that there is a probability of a collision, it assists the driver in collision avoidance maneuver with a warning and brake control.

If the system judges that a collision is imminent, PCS then applies additional brake force to help avoid a collision and mitigate collision impact.
The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.
Be sure to read the Owner’s Manual carefully.

Dynamic Radar Cruise Control (DRCC)

DRCC keeps the vehicle traveling at a preset speed and automatically adjusts the speed to maintain a safe distance from the vehicle in front.
The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.
Be sure to read the Owner’s Manual carefully.

Lane Departure Alert (LDA) with Steering Control / Lane Tracing Assist (LTA)

LDA/LTA detect lane markers and help prevent unintentional lane departure by alerting the driver through displays, buzzer sound, and steering assist.
The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.
Be sure to read the Owner’s Manual carefully.

Automatic High Beam (AHB)

AHB detects surrounding light during nighttime driving and automatically switches between high and low beam to contribute to securing visibility and reducing glare towards oncoming traffic.
The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.
Be sure to read the Owner’s Manual carefully.

Vehicle Stability Control (VSC)

VSC helps ensure that the vehicle holds its direction through a corner by automatically adjusting the engine power and braking force going to each individual wheel.
The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.
Be sure to read the Owner’s Manual carefully.

Hill-start Assist Control

Helps to prevent the vehicle from rolling backward when starting on a steep or slippery incline.

Body Structure

High integrity cabin with front and rear crumple zones help absorb and disperse impact energy in a collision.

Back Monitor

Rear camera display supports smooth reversing operations when perpendicular or parallel parking.
The back monitor shows a limited area. Be sure to look at your surroundings before you proceed.
