Toyota Majesty (10 Seaters)

SFXLY
Seating Capacity (Door)10(5)
DIMENSIONS & VEHICLE WEIGHT
OverallLength (mm) 5300
Width (mm)1970
Height (mm) 1990
Wheelbase3210
TreadFront (mm)1675
Rear (mm)1670
OverhangFront (mm)970
Rear (mm)1120
Minimum running ground clearancemm175
Gross vehicle weightkg3500
Fuel tank capacityliters65
CHASSIS
Transmission type6-speed automatic transmission
BrakesFrontVentilated disc brake with floating caliper 2-cylinder
RearVentilated disc brake with floating caliper 1-cylinder
SuspensionFrontMacPherson strut
Rear4-link with coil spring
Stabilizer barFrontTorsion bar
RearTorsion bar
Steering gear typeRack & pinion
Min. turning radiusTire(m)5.5
Tires235/60R17
ENGINE
Engine type2.8-liter diesel (1GD-FTV)
Number of cylinders & arrangement4 cylinders, in-line
Valve mechanism16-valve DOHC
Bore x strokemm92.0 x 103.60
Displacementc.c.2755
Fuel typeDiesel
Max. outputkW / rpm115 /3600
Max. torqueNm / rpm420 /1600-2200
STANDARD EQUIPMENT (EXTERIOR)
Radiator grillePainting + Plating
BumperPP painting
HeadlampsLED (with Automatic High Beam)
Front fog & driving lamp●(LED)
Daytime running light system●(LED)
Rear combination lamps●(LED)
Disc wheel17-inch aluminum
Power slide doorDual-side sliding side doors (with auto & easy closer)
Wireless door lock system
STANDARD EQUIPMENT (INTERIOR)
Steering columnTilt able & telescopic
Front seatDriver (power), passenger, center (manual)
Second-row seatsPower captain seats (with ottoman)
Third-row seatsManual captain seats
Forth-row seatsTip-up seats (60:40 split seats)
Seat cover materialLeather (quilted)
Audio system6 speakers
Speakers7-inch Display Audio, AM/FM/DVD/CD/Bluetooth
Audio Jack (cockpit area)● (AUX&USB)
Front air conditioning● (AUTO A/C)
Rear air conditioning● (AUTO A/C)
SpeedometerAnalog Optitron (mile/h: main, km/h)
Eco meter
Accessory connector (cabin area)DC 12V x 2 + USB 2 x 3
SAFETY SYSTEM
Toyota Safety SensePCS (Pre-Collision System)
LDA (Lane Departure Alert)
AHB (Automatic High Beam)
DRCC (Dynamic Radar Cruise Control)
Anti-lock Brake System (ABS)
Vehicle Stability Control (VSC)
Hill-start Assist Control (HAC)
Parking assistClearance sonar + back sonar (6 sensors)
Back monitor (with guidelines)
SRS airbags10 airbags (driver + front passenger & front center seat + driver knee + front seat side +
front curtain + rear curtain)

Specifications may vary from model(s) shown. Please contact the official dealer for more information.

Majesty White Pearl Crystal Shine (070)
Majesty Silver Metallic (1E7)
Majesty Gray Metallic (1G3)
Majesty Black (202)
Majesty Luxury Pearl Toning (2QD)
Capture
previous arrow
next arrow

Majesty White Pearl Crystal Shine (070)
Majesty Silver Metallic (1E7)
Majesty Gray Metallic (1G3)
Majesty Black (202)
Majesty Luxury Pearl Toning (2QD)
Capture
previous arrow
next arrow
Exterior
Front Design

The large radiator grille with metallic ornamentation is merged with the headlamps, and projected downward and outward to create a front face with strong presence.
The bumper lower opening is extended fully to the sides, expressing a bold and firmly planted, wide and low stance.

Front Lamps (Headlamps, Daytime Running Lights, Fog Lamps)

Large headlamps with LED Daytime Running Lights and fog lamps impress with an appearance of a luxury vehicle.
The layered construction of the headlamps gives a sense of density, creating visually impactful “eyes.”

Dual-side Automatic Sliding Side Doors

Toyota Majesty features automatic sliding side doors on both sides of the vehicle. The sliding doors are equipped with step lamps, while the door steps are equipped with LED illumination. This greatly facilitates entry and exit under any conditions.

Rear Design

To create a low and firmly planted stance at the rear, the design has been given a low center of gravity that accentuates the thickness of the bumper.
In addition to a roof spoiler, the rear combination lamps with a distinctive graphic are combined in a high position for a striking rear design.

Rear Combination Lamps

The surface-emitting LED tail lamps feature a distinctive graphic that appears to point upwards, giving the vehicle an impressive and bold appearance.

Interior

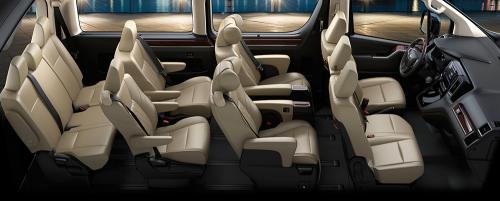

Comfortable Seating with Captain Seats

Passenger seats with wide seat shoulders are comfortable and add an exclusive feel.

The second-row power captain seats come with an ottoman pursuing even greater comfort and higher quality.

Features that Create a Gorgeous Space

Woodgrain and metallic ornamentation panels envelop the passengers in the back, giving a glamorous impression upon first glance.

Illumination lamps are provided at the passengers’ waist height on the side trims, which create a high-class interior space.

High-end Cockpit Space

Stitching treatment to the instrument panel and meter hood, plus high-quality woodgrain ornamentations for the front door trim, seatback tray, steering wheel and other areas create a high-end cockpit space.

Front Seats

The three-seat front row offers superior ride comfort and a touch
of class. The center seat can be folded and used as a convenient center tray with cup holders.

Meters and Steering Wheel Switches

Optitron 2-dial meters offer excellent visibility, while a 4.2-inch color TFT multi-information display supports comfortable driving.

Steering wheel switches enable you to control the audio system, meter displays and other functions.

Multimedia System

The multimedia system with a 7-inch display enables intuitive, smartphone-like screen operation and plays AM/FM radio, DVDs and CDs.

It is also equipped with a USB port plus AUX. The system is compatible with Bluetooth connectivity.

Automatic Dual Air Conditioning

Automatic air conditioning with front/rear independent control provides comfort for all aboard. Ion (nanoe*1) generators with a bacteria and odor removal effect*2 are available.

*1: The nanoe name and logo mark are trademarks of Panasonic Co., Ltd.
*2: The nanoe system may not operate sufficiently depending on factors such as the temperature, humidity, airflow volume and direction.

Cabin Utility

1) Reading lamps are provided for each seat.

2) Sunshades block direct sunlight and offer comfort for the passengers.

3) The center console features ample storage spaces and a USB port.

4) Deck side trim tray and bottle holder are provided for each seat.

Luggage Space

The rearmost tip-up seats enable increased luggage capacity by flipping up the cushions and sliding the seats forward.

Performance
1GD-FTV Engine

The 1GD-FTV engine adopts a turbocharger with intercooler, which helps produce powerful dynamic performance while enhancing fuel economy and quietness.

Output: 115kW / 3600rpm
Torque: 420Nm / 1600-2200rpm

6-speed Automatic Transmission

6-speed automatic transmission is available, helping achieve excellent dynamic performance and fuel economy. The transmission also contributes to superior drivability.

Suspension / Brakes

MacPherson strut suspension is adopted for the front and a 4-link coil suspension for the rear, helping achieve excellent handling and stability as well as a quiet and superbly comfortable ride.

The adoption of disc brakes for the front and rear yields excellent braking force.

Minimum Turning Radius (Tires)

The minimum turning radius of Toyota Majesty lets you easily maneuver in tight worksites.

Top Level Quietness

-Semi-bonneted body prevents intrusion of engine noise into the cabin by isolating the engine compartment from the cabin.
-Full under cover has been added to enhance quietness.
-Optimum placement of sound absorbing and silencing materials prevents road and engine noise from entering the cabin.
-High rigidity body frame is adopted to prevent uncomfortable vibrations.

Safety
Pre-collision System

When data from the millimeter-wave radar and camera sensors predicts a likely collision with a vehicle ahead, the system activates pre-collision brake assist when the driver depresses the brake pedal.

If the driver does not depress the brake pedal, it activates the pre-collision brakes.

Automatic High Beam

The system detects the lights of vehicles ahead, whether they are traveling in the same or opposite lane, and automatically adjusts the headlamps to low or high beam to enhance forward visibility during nighttime driving.

Lane Departure Alert

The system helps prevent unintentional lane changes by warning the driver with a buzzer, steering wheel vibration and a warning indicator.

Dynamic Radar Cruise Control

Keeps the vehicle traveling at a preset speed and automatically adjusts the speed to maintain a safe distance from the vehicle in front.

ASEAN NCAP

As a model with 5-star ASEAN NCAP rating, Toyota Majesty provides an outstanding level of safety with 10 SRS airbags which includes one for the front center seat, Vehicle Stability Control, Hill-start Assist Control and many more.

Vehicle Stability Control

When sensors detect conditions likely to cause skidding, VSC helps prevent front or rear wheel slip by optimally controlling engine power and braking force.

Hill-start Assist Control

Hill-start Assist Control (HAC) helps to prevent the vehicle from rolling backward, for example when starting on a steep incline.

Ten SRS Airbags

Ten SRS airbags are available at:

1: driver seat
2: driver seat knee
3: front-seat passenger
4: front-seat center
5: front seat side
6: front & rear curtain-shield

All seats are equipped with 3-point ELR seatbelts.

Parking Assist

Supports smooth reversing operations when perpendicular or parallel parking, showing the rear view on the display together with guidelines to help the driver steer.
Additionally, front and rear clearance sonar displays a warning message on the multi-information display and beeps if an obstruction is detected.
