Corolla Cross

  ZSG10L-DHXEK
DIMENSIONS & WEIGHT
OverallLength (mm) 4460
Width (mm) 1825
Height (mm) 1620
Wheelbasemm2640
TreadFront (mm)1559
Rear (mm)1571
OverhangFront (mm) 955
Rear (mm)865
Minimum running ground clearancemm161
Curb weightkg1325-1395
Gross vehicle weightkg1815
Seating capacityPersons 5
Cargo capacityliters440
Fuel tank capacityliters47
ENGINE
Engine model code2ZR-FE
Engine type16-Valve DOHC, chain drive with Dual VVT-i
Number of cylinders & arrangement4 cylinders, In-line type
Bore x strokemm80.5 x 88.3
Piston displacementc.c.1798
Fuel typeGasoline
Max. output (SAE net)kW / rpm103 /6400
Max. torque (SAE net)Nm / rpm172 /4000
CHASSIS
DriveFront Wheel Drive, Front Engine
Transmission typeCVT (Continuously Variable Transmission)
BrakesFrontVentilated disc brake with floating caliper 1-cylinder
RearSolid disc brake with floating caliper 1-cylinder
SuspensionFrontMacPherson strut suspension
RearTorsion beam suspension
Stabilizer barFrontTorsion bar
RearTorsion bar
Steering gear typeRack & pinion
Min. turning radiusTire(m)5.2
Tires225/50R18
STANDARD EQUIPMENT (EXTERIOR)
HeadlampsLED
Front fog & driving lampWith
Daytime running light systemWith
Rear combination lampsHi Grade
Rear spoilerWith
Roof railsWith
MoonroofTilt & slide
Disc wheel18-inch aluminum
Electrically powered back doorPowered back door with kick sensor
Wireless door lock systemSmart System (with panic)
STANDARD EQUIPMENT (INTERIOR)
Steering wheel3 spoke wheel, leather
Steering columnltable & telescopic
Front seat8-way power seat (driver’s seat),
4-way manual seat (passenger’s seat)
Rear seatSplit Folding (60 : 40)
Seat cover materialLeather
Audio system8-inch display audio (AM/FM/Bluetooth/USB)
Speakers6 speakers
Audio Jack (lower center instrument panel)USB
Air conditioningAutomatic air conditioner (dual mode)
Rear face registerWith
Multi information displayColor meter 4.2-inch display
Eco meterECO Driving Indicator
Steering switchesWith switches (Audio, Telephone, Voice,
Cruise Control, Lane Tracing Alert, Display)
Starting systemPush start system
Accessory connector (Inside center console box) Front: DC12V / Rear: USB*2
SAFETY SYSTEM
Toyota Safety SensePre-Collision System (PCS)
Dynamic Radar Cruise Control (DRCC)
Lane Departure Alert (LDA)/
Lane Tracing Assist (LTA)
Automatic High Beam (AHB)
Anti-lock Brake System (ABS)With
Vehicle Stability Control (VSC)With
Hill-start Assist Control (HAC)With
Parking assistClearance sonar + back sonar (6 sensors), Back guide monitor
SRS airbags7 airbags (driver, front seat passenger, driver’s knee, front seat side, curtain shield)

Specifications may vary from model(s) shown. Please contact the official dealer for more information.

Corolla-Cross_Catalog_.pdf
1.42 MB
73 downloads

COROLLA_Catalog.pdf
1.23 MB
33 downloads
previous arrow
next arrow
previous arrownext arrow
Slider
Exterior
Front Design

Boldly protruding front grille, together with the stable form of the lower bumper create a tough and refined ‘Double Trapezoid’ design.

LED Headlamps

Bi-Beam LED headlamps offer excellent visibility and enhance product appeal. (available on High grade)

Laterally extending DRLs (Daytime Running Light) achieve a wide and resolute look.

Side Design

An axis that runs from the front to the rear of the body, and a sleek cabin profile express utility and vehicle class.
The bold three-dimensional fusion of the front and rear fenders expresses dynamism and imposing toughness.

18-inch Aluminum Wheel

Black and bright machine-finished twin spokes express luxury and sportiness.

Rear Design

Boldly flared fenders and aerodynamically tapered cabin create a contrast that emphasizes the imposing stance.

Rear Combination Lamp

Surface light emitting tail lamps achieve uniform linear illumination for an advanced and precise feel.

Rear Spoiler

Sheet metal spoiler with 250mm depth adds sportiness while contributing to weight reduction.

Interior

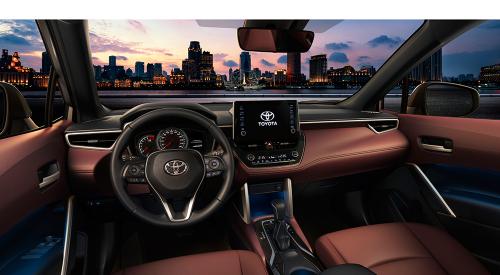

Instrument Panel Design

Instrument panel design combines an open feel with toughness of an SUV.

Front Seats

TNGA (Toyota New Global Architecture) is incorporated to the front seats, offering comfortable driving position for the driver and ample headroom for occupants.

Available power driver seat ensures a comfortable posture for drivers of all physiques.

8-inch Display Audio

8-inch display audio system with upgraded connectivity enhances device compatibility, cabin comfort, ease of use, and audio quality.

Air Conditioning

A compact, highly-efficient TNGA air conditioning unit is available for maintaining comfortable cabin environment.

Large LCD (Liquid Crystal Display) control panel ensures ease of use.

Moonroof

Available moonroof increases the open feel of the cabin.
– Forward position allows front occupants to enjoy more light
– Tilt & Slide function
– Comfort stop function reduces wind noise
– Key-linked operation (through customization)
– A moonroof close reminder when leaving the vehicle

Rear Comfort

Rear seat passengers are treated with utmost comfort.

– Excellent ingress/egress
– Abundant head clearance
– More outward visibility
– Reclining seatbacks
– Ample knee room
– Armrest with cupholders

Rear Face Register

Rear face registers at the back of the center console box provide cool air directly to the rear passengers.

USB power ports below the registers also enhance convenience.

Seat Arrangement

Various storage spaces are provided for effective use of space in accordance with the customer’s needs.

Luggage Space

The luggage compartment has class-leading capacity and offers ample space for all your cargo. Best of all, it is amazingly easy to access when loading and unloading.

Powered Back Door with Kick Sensor

The kick sensor allows the power back door to be opened and closed while user’s hands are occupied, enhancing convenience.

Performance
TNGA: Stability

Highly rigid body structure ensures handling stability and ride comfort.

Suspension designed to provide a fine-tuned balance of dynamic handling and stability with exemplary ride comfort.

Exceptional balance of stability and comfort with significantly reduced uncomfortable bouncing.

TNGA: Visibility

Higher seating position and slimmer front pillars allow unobstructed visibility.

TNGA: Agility

Best-in-class Turning Radius (Tire)
5.2 m

CVT (Continuous Variable Transmission)

7-speed Sequential Shiftmatic Continuously Variable Transmission (CVT) incorporates a new cooperative control with the electronically-controlled throttle.

1.8L Gasoline Engine 2ZR-FE

High fuel efficiency and sporty driving is delivered by the 1.8-liter engine with Dual VVT-i. Additionally, when starting up, this engine achieves linear acceleration.

Suspension

MacPherson struts on the front and newly-developed trailing wishbone suspension on the rear contribute to a comfortable ride that minimizes shock and vibration, together with excellent handling stability and high-quality driving characteristics.

Safety
Pre-Collision System (PCS)

When data from the millimeter-wave radar and camera sensors predicts a likely collision with a vehicle ahead, the system activates pre-collision brake assist when the driver depresses the brake pedal.

If the driver does not depress the brake pedal, it activates the pre-collision brakes.

* The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.

Dynamic Radar Cruise Control (DRCC)

DRCC is equipped with millimeter-wave radar and monocular camera sensors to detect vehicles ahead, and assists following while maintaining a speed-dependent distance to the vehicle in front.

* The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.

Lane Departure Alert (LDA)

The system warns the driver with a buzzer and alert lamp when the car begins to leave its lane without turn signal activation from the driver. The system can also activate steering assist to correct steering inputs and prevent the vehicle from leaving its lane.

* The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.

Automatic High Beam (AHB)

Detects the lights of vehicles ahead and automatically adjusts the headlamps to low or high beam.

* The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.

Hill-start Assist Control

Helps to prevent the vehicle from rolling backward when starting on a steep or slippery incline.

Vehicle Stability Control (VSC)

VSC helps ensure that the vehicle holds its direction through a corner by automatically adjusting the engine power and braking force going to each individual wheel.

* The system may not operate properly depending on the weather, road, and vehicle conditions or other factors.

7 SRS Airbags

The Supplemental Restraint System includes driver and front passenger airbags, a knee airbag for the driver, and SRS side and curtain-shield airbags.
